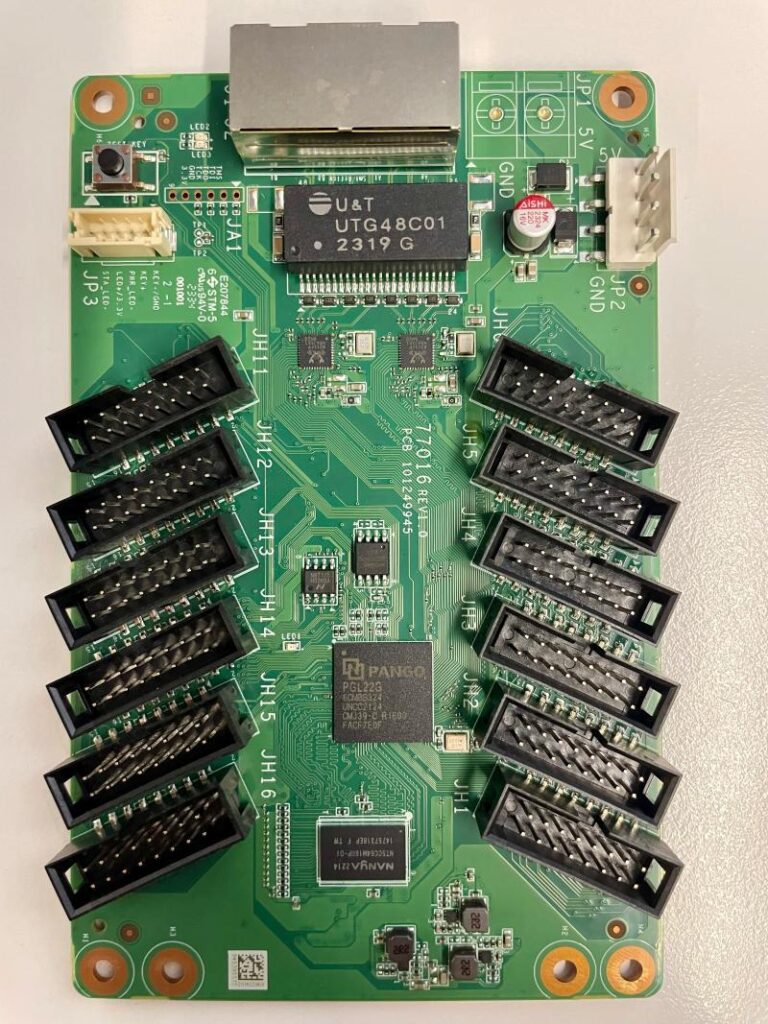

DS-DR31H-12
- Cooperate with HikLCT and CLB to correct the brightness and chromaticity of each light point, effectively eliminate chromatic aberration, make the brightness and chromaticity of the whole screen highly uniform, and improve the picture quality of the display screen.
- Adjust the bright and dark lines caused by module splicing and cabinet splicing, and improve the visual abruptness caused by bright and dark lines. It takes effect immediately during the adjustment process, which is easy to use.
Available models:
DS-DR31H-12，12*HUB75，100PCS/Box
Specification
- Processing Performance
- Max. Load Capacity 512 × 512 pixels
- Grey Level 16 bit
- Power
- Max. Consumption 2.5 W
- Input Voltage DC 3.3 V to 5.5 V
- Working Environment
- Working Temperature -20°C to 60°C
- Working Humidity 10% to 90% RH (non-condensing)
- Storage Temperature -20°C to 70°C
- Storage Humidity 0% to 95% RH (non-condensing)
- General
- Product Dimensions (W × H × D) 91.5 mm × 18.7 mm × 144 mm
- Net Weight 95 g
- Packing List Each packing box contains 100 receiving cards.
